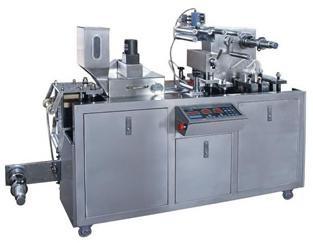

DPB-80 Flat Plate Alu-PVC Blister Packaging Machine
Application:
DPB-80 Flat Plate Alu-PVC Blister Packaging machine is of
flat-plate structure, with pressing, molding, meshes heat-sealing,
adjustable travel range, for small size of body and ease of
operation. It is applied to Al-plastic packaging for capsule,
table, candy, healthcare, small hardware etc. It is widely used in
small pharmacy factory, preparation-room of hospital institute
laboratory, mini-motor test workshop. The machine reaches advanced
level in China.
Features:
With manipulator towing and adjustable travel range, it can be
suited for blister packing of various sizes. Flat plate structure
can pack special shape products, such as: elliptic shape, square
shape, triangle shape, liquid, paste and syringe etc. The whole
procedure of feeding, forming, heat-sealing, impressing, batch
number printing and cutting is accomplished automatically and
continuously. The machine is small in size, with frequency inverter
and ease of operation.
Technical Parameters
| Model | DPB-80 |
| Cutting Frequency (Times/min) | 20-40 |
| Max. Production Capacity (Blister/h) | 2400 (According to standard plate 80x57) |
| Max. Forming Area and Depth (mm) | 80x100x26 (Standard 70x90x14) |
| Travel Range (mm) | 20-100 (Can be manufactured as user's requirements) |
| Air Pressure (Mpa) | 0.4-0.6 |
| Standard Plate (mm) | 80x57 (Can be manufactured as user's requirements) |
| Total Power | 380V/220V 50Hz 1.8kw |
| Main Motor Power (kw) | 0.75 |
| PVC Rigid Sheet (mm) | 0.15-0.5x80 |
| PTP Aluminum Foil (mm) | 0.02-0.035x80 |
| Dialysis Paper (mm) | 50-100gx80 |
| Mould Cooling | Tap Water or Circulating Water |
| Overall Dimensions (mm) | 1400x460x950(LxWxH) |
| Weight (kg) | 450 |
