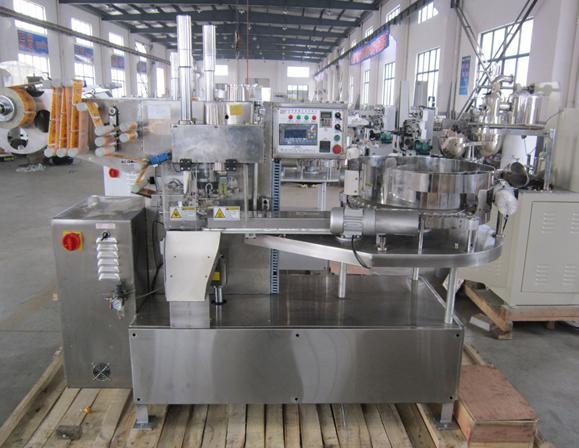

HTL-200 Lollipop Candy Twist Wrapping Machine

Characteristics

1.This machine tracking system of lable sign is controlled by microcomputer.accurate and reliable feeding, wrapped in paper, heat sealing, kink and other activities as a whole joint coordination, packaging lollipop shape beautiful and clean, seal good.
2.Electronic control system with optical tracking, when the device is turned on when there empty sugar, can simultaneously stop the paper, no paper waste, even in the case of paper curl can be packed easily. A stepping motor.
3.The machine operating speed automatically according to changes in the feed speed, good performance. Imported inverter, PLC, optical rotary encoders and switches and man-machine interface.
4.Imported transducer,PLC,circumvolve coder,reliable pattem position by microcomputer.
5.Human-friengdly design,easy to operate,convenience maintenance.
6.Food contact parts are stainless steel.

Details:

Main technical

Model:HTL-200
Packing speed:200-600pcs/min
Lollipop candy size:Min:22；Max:35
Film size:Max size:125*125mm
Voltage:380V/60HZ
Total power:2.2kw
Dimension:2500*900*1500mm
Total weight:1200kg

Shanghai Xinyu Packaging Machinery Co., Ltd. is a professional developer and manufacturer of packing machine  dryer machine  The packing machine is our main products.It includes the sealing packing machine,vacuum packing machine,box packing machine,powder,granular and liquid packing machine.We ship our machines for more than 70 countries and area.Good faith is our company principle,welcome every friend to visit our website.
