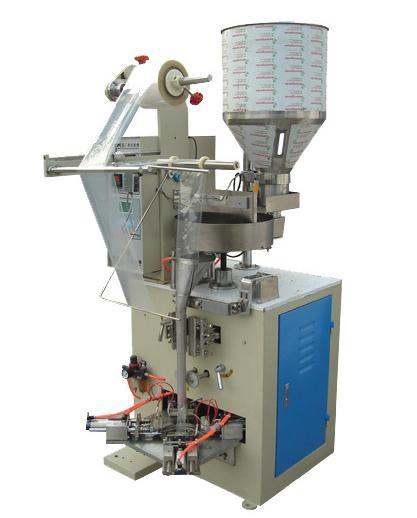

YX-180 Triangle Bag Automatic Packing Machine

Performance:

This machine is the introduction of foreign advanced technology, absorb the essence of the domestic counterparts, adopt advanced imported photoelectric photoelectric control system.Two bag bag cutting can be accurate.Completion of bag making, measuring, filling, sealing, cutting, incision, heat-printing codes, separable can be united, and other functions.
Usage: food packages installed suitable for food, chemical, pharmaceutical, condiments such as liquid packaging (if kernel, sugar, chocolate beans, fishskin peanuts, taking the pills, tablets, health products and other packaging), automatic bag making, sealing, counting, even more bags half cut, cut off all one-time finish.

Packing materials: pt/PE, pet/plated al/PE, pet/pp, BOPP film, nylon composite membrane can be heat sealing compound packing materials.

Parameter

Packing speed: 30~50bags/min

Packing Size(MM): L:50~100mm W:40~70mm

The film thickness: 0.03~0.07mm

Total Power :1.2kw

Overall Dimension:900×720×1600

Machine weight:300kg

The max diameter of the roll paper outside :≤φ350mm

Voltage: 220vag

Filling Capacity:15~120ml

The film max width: 180mm
